The Power Demands of Large-Scale Farming
Large-scale farming operations face challenges that smaller operations simply don't encounter. Vast fields, tight planting windows, and the need for deep tillage, subsoiling, and combined tillage demand equipment that can deliver sustained power, high traction, and uncompromising reliability.
For these operations, the 410 horsepower segment represents a critical threshold—enough power to pull wide cultivators, deep rippers, and heavy seeders through demanding soil conditions, yet efficient enough to keep operating costs manageable across thousands of acres.
The core requirements for heavy tillage tractors are clear:
- High traction force: To pull large implements through heavy soils
- Sustained power output: Hours of continuous operation without overheating or derating
- Reliability: Minimal downtime during critical planting and tillage windows
Traditional high-horsepower diesel tractors have served these needs for decades. But a new generation of hybrid technology is emerging that promises the same power with significantly better efficiency.
For a comprehensive overview of electric and hybrid tractor technology across all farming scenarios, see our Ultimate Guide to Electric & Hybrid Tractors.

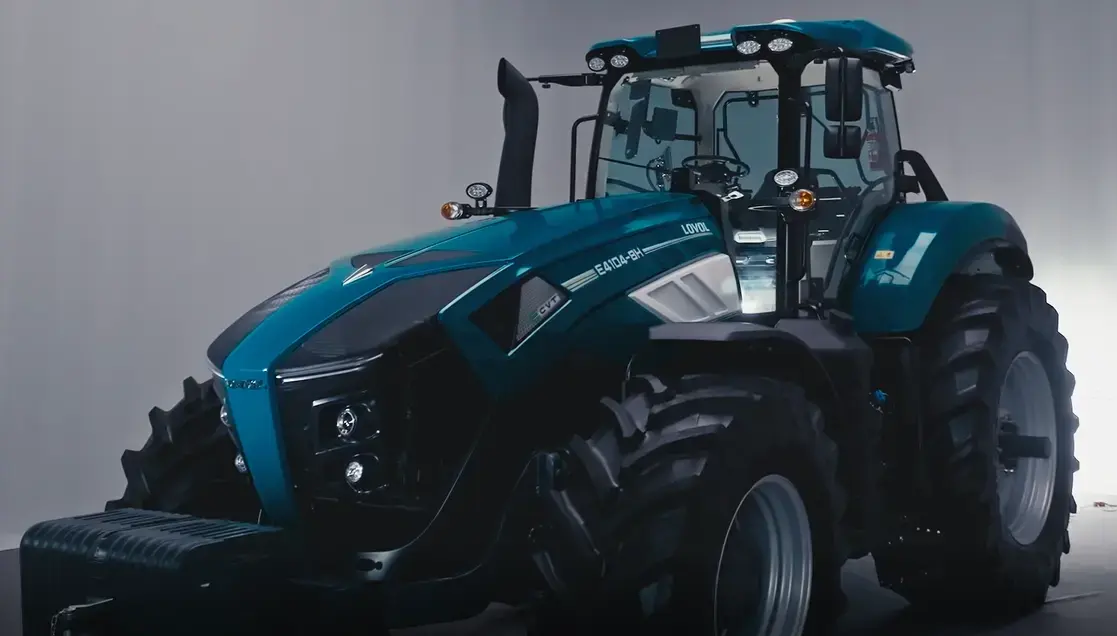

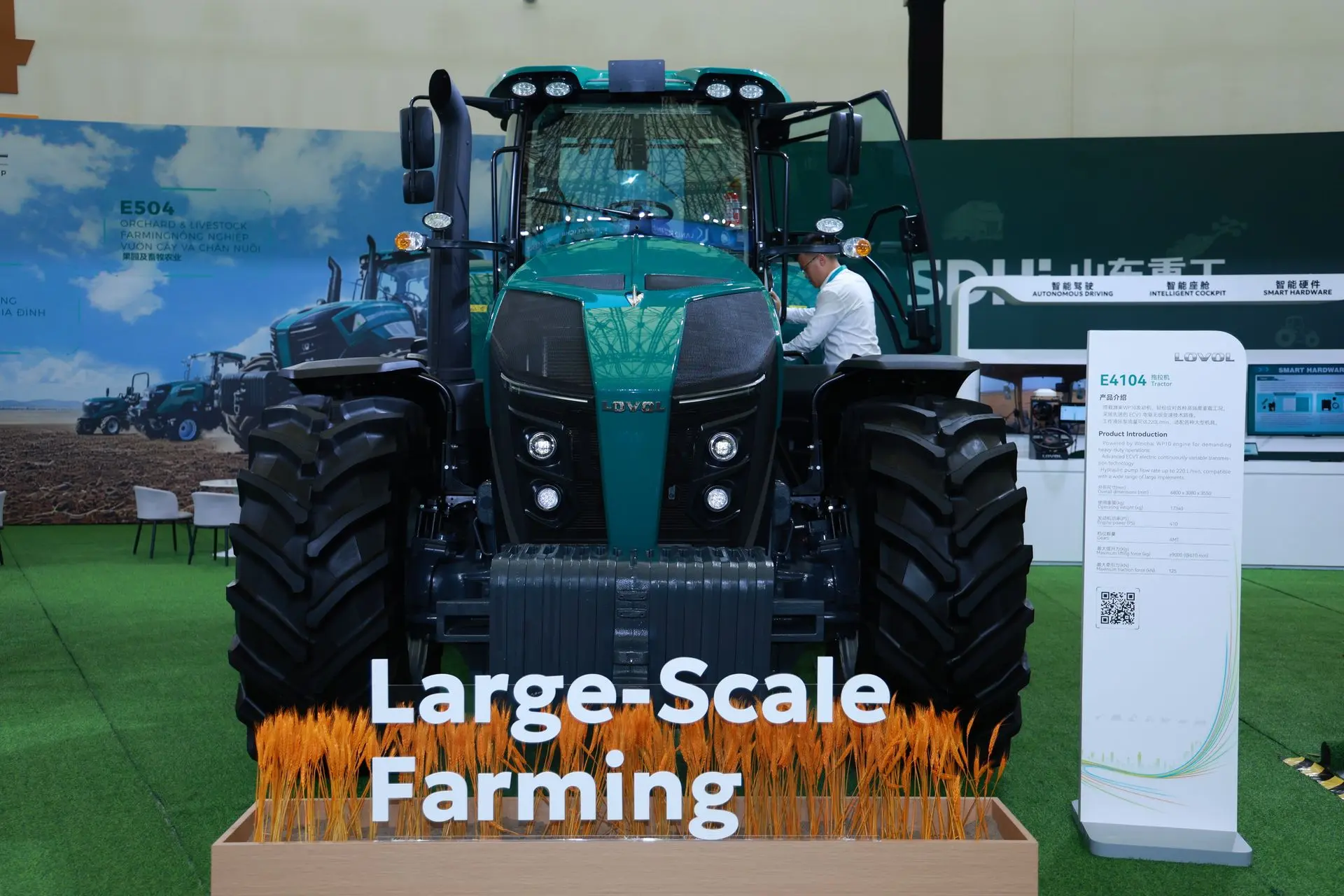

The E4104-8H: LOVOL's Flagship Hybrid for Large-Scale Operations
The LOVOL E4104-8H is the company's newly launched high-end hybrid tractor, designed for large-scale farms to meet the demands of large-area and heavy-duty field operations . Following the E3404-8H (340 HP) hybrid, the E4104-8H represents one of LOVOL's most ambitious entries into the high-horsepower tractor segment.
Weichai WP10.5H Engine: 410 HP with Ample Reserve
At the heart of the E4104-8H is the Weichai WP10.5H engine, delivering 410 horsepower with abundant power reserve and high torque, easily coping with all kinds of high-intensity and heavy-duty working conditions. This proven powerplant provides the sustained output needed for hours of heavy tillage, subsoiling, and combined tillage operations.
The E4104-8H is positioned as LOVOL's flagship hybrid model for large farms, complementing the E3404-8H in the product lineup. Together, they offer a tiered approach to farm electrification—the E3404-8H for operations ready to adopt hybrid technology, and the E4104-8H for those requiring maximum power and capability.
Specifications at a Glance
Specification | Detail |
Model | E4104-8H |
Engine Power | 410 PS |
Engine Model | Weichai WP10.5H |
Overall Dimensions (L×W×H) | 6,800 × 3,080 × 3,550 mm |
Operating Weight | 17,340 kg |
Max Traction Force | 125 kN |
Max Lifting Force | ≥9,000 kg (@610 mm) |
Fuel Tank Capacity | 700 L |
Transmission | ECVT + 2-speed AMT |
Hydraulic Pump Flow | 220 L/min |
Speed Range | 0–40 km/h |
ECVT Powertrain: The Heart of Hybrid Efficiency
What Makes ECVT Different
The E4104-8H's transmission system adopts advanced ECVT (Electric Continuously Variable Transmission) technology matched with a two-speed electronically controlled AMT gearbox, covering a wide travelling speed range from 0 to 40 km/h.
The ECVT architecture represents a fundamental departure from traditional high-horsepower tractor transmissions:
- Traditional power shift transmissions: Fixed gear ratios, power interruptions during shifts, limited efficiency at partial load
- Traditional CVT transmissions: Hydraulic or mechanical variable drive, parasitic losses, limited efficiency at high torque
- ECVT (Electric CVT): Electric drive power-split technology that overcomes key technical challenges in hybrid CVT and electric motor direct drive — achieving high efficiency and low fuel consumption
The Efficiency Advantage
The ECVT system in the E4104-8H delivers tangible efficiency gains:
- Transmission efficiency: Over 10% higher than conventional hybrid routes
- Fuel consumption: Approximately 20% reduction compared to comparable diesel tractors
- Academic validation: Well-designed ECVT configurations can reduce equivalent fuel consumption by 5.17% under plowing conditions while enabling decoupled PTO and travel speed control
Decoupled PTO and Travel Speed
A key advantage of the ECVT architecture is decoupled PTO and travel speed control. The tractor can maintain optimal PTO speed for the implement while independently adjusting ground speed to match field conditions. This is particularly valuable in heavy tillage applications where implement performance (proper seedbed preparation, consistent depth) depends on PTO speed, but ground conditions vary across the field.
What this means in practice:
- Plowing at the optimal depth while PTO-driven implements run at their designed speed
- Smooth acceleration and deceleration without power interruptions
- Instant torque response for challenging soil conditions
Two-Speed AMT: Wide Speed Range
The E4104-8H combines ECVT with a two-speed electronically controlled AMT gearbox, enabling:
- 0–40 km/h infinitely variable speed control
- Low-speed heavy-torque capability for demanding tillage
- High-speed transport efficiency for moving between fields
This wide speed range eliminates the compromises that fixed-gear tractors impose—farmers can till at optimal speeds and transport at road speeds without changing machines.
Not sure which powertrain fits your operation? See our ECVT powertrain comparison between hybrid and pure electric options.
For a deeper dive into how ECVT systems recover energy, see our guide on regenerative braking and energy management.
Hydraulic System and Large-Implement Compatibility
220 L/min Hydraulic Flow — Industry-Leading Capability
The E4104-8H's working hydraulic pump flow rate can reach 220 L/min, making it suitable for various large-scale agricultural machines such as compound seed drills, combined tillage tools, and precision planters.
What 220 L/min means in practice:
- Faster implement response: Quicker lift/lower cycles at headlands
- Multiple implement control: Simultaneous operation of multiple hydraulic functions
- Large implement compatibility: Powering the largest seeders, cultivators, and rippers
- Reduced cycle times: Less waiting, more working
Full Electro-Hydraulic Control and Fully Wire-Controlled Chassis
The E4104-8H features full electro-hydraulic control with a fully wire-controlled chassis. Every function—from hitch control to PTO engagement to implement management—is electronically governed, enabling:
- Precision implement control: Consistent depth, pressure, and position
- Automated headland management: Lift, turn, lower with one button
- Integration with precision farming: Variable-rate applications, automatic section control
- Reduced operator fatigue: Less manual effort, more focus on results
Large-Implement Compatibility
The combination of 410 HP, 125 kN traction force, and 220 L/min hydraulic flow makes the E4104-8H compatible with the largest implements in the field:
Implement Type | Application | Why the E4104-8H Excels |
Heavy cultivator | Deep tillage, soil structure improvement | 125 kN traction + 220 L/min hydraulic flow |
Seeder/Planter | Large-scale planting, precision seeding | ISOBUS integration + electro-hydraulic control |
Combined tillage tool | One-pass seedbed preparation | 410 HP + wide speed range |
Subsoiler | Compaction breakage, deep ripping | High traction + sustained power |
Strip-till implement | Conservation tillage | Decoupled PTO and travel speed control |
Learn how the E4104-8H integrates with precision farming platforms and smart agriculture IoT systems.
Value Creation for Large-Scale Operations
Operational Efficiency
The combination of ECVT wide-range speed control and 220 L/min hydraulic flow delivers measurable efficiency gains:
- Reduced headland time: Fast implement response and smooth speed transitions
- Consistent field speed: ECVT maintains optimal speed regardless of load
- More acres per hour: Less time spent turning, lifting, and lower
Fuel Economy
For large farms where fuel is one of the largest operating expenses, the E4104-8H's approximately 20% fuel savings represent a significant annual reduction. Over thousands of acres, the savings compound quickly.
Product Line Strategy
The E4104-8H and E3404-8H together offer a tiered approach to farm electrification:
Model | Power | Best For |
E3404-8H | 340 PS | Large farms ready to adopt hybrid technology |
E4104-8H | 410 PS | Large farms requiring maximum power and capability |
This product matrix allows farmers to choose the right level of power for their specific operation, knowing that both share the same ECVT technology platform and reliability standards.
Compare the E4104-8H with the E3404-8H for heavy tillage capabilities.
The Power Flagship for Large-Scale Agriculture
The LOVOL E4104-8H represents the cutting edge of high-horsepower hybrid tractor technology. With its Weichai WP10.5H engine delivering 410 horsepower, ECVT transmission offering 0-40 km/h infinitely variable speed control, and 220 L/min hydraulic flow, it is purpose-built for the demands of large-scale tillage, subsoiling, and combined tillage operations.
The E4104-8H delivers:
- Proven power: 410 HP from the reliable Weichai WP10.5H engine
- Hybrid efficiency: ~20% fuel savings through ECVT technology
- Unmatched capability: 125 kN traction force, 9,000 kg lifting capacity
- Industry-leading hydraulics: 220 L/min flow for the largest implements
- Smart integration: Full electro-hydraulic control, ISOBUS compatibility
- Operational productivity: 0-40 km/h wide speed range, reduced cycle times
Who Should Consider the E4104-8H?
- Large-scale farms requiring maximum power for deep tillage and subsoiling
- Custom operators covering thousands of acres across multiple fields
- Farmers looking to reduce fuel costs through hybrid technology without compromising power
- Progressive operations ready to adopt electrification at the highest power levels
For a deeper dive into the E4104-8H's place in the LOVOL lineup, see our heavy tillage capability comparison with the E3404-8H. To explore the full range of precision farming integrations, see our guide to the LOVOL Smart Agriculture Management Platform.
