RX230 Multi-Terrain Crawler Tiller
Explore in 3D
Specifications
Model Comparison

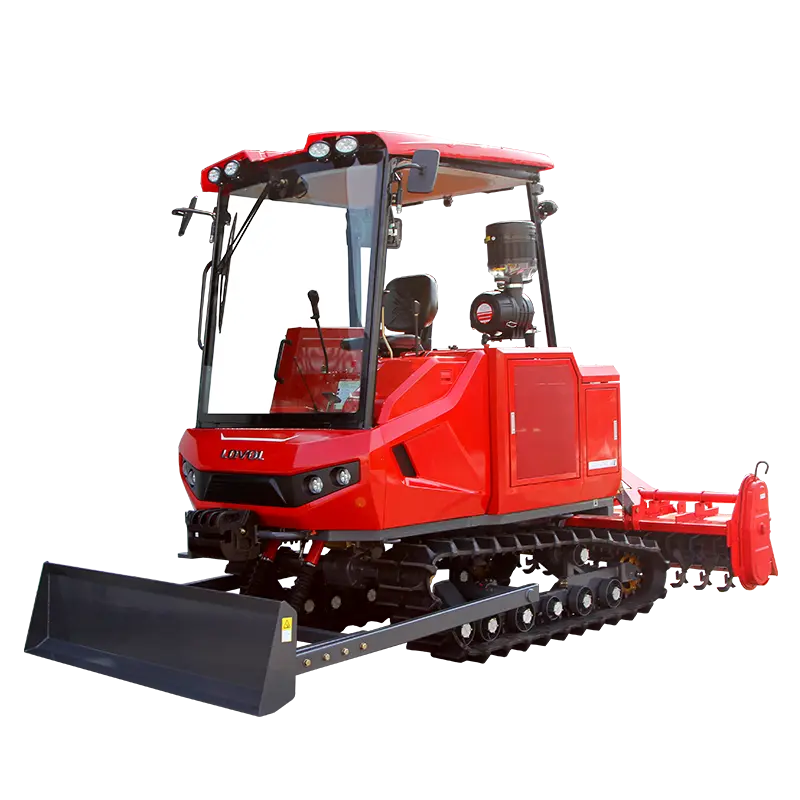

RX230 Multi-Terrain Crawler Tiller
A high-performance, all-condition tillage specialist designed for paddy, slopes, and complex fields.
- Crawler Mobility: Low-ground-pressure tracks (0.18kg/cm²) conquer muddy paddies and 25° slopes
- Multi-Function Tool Frame: Quick-attach for puddling, crushing, mixing (3-in-1 blade system)
- 230HP Power: Turbo engine delivers 1.8m working depth at 5km/h
- Smart Operation: Auto-leveling + turn-assist for contour farming
Ideal For: Rice farms, hilly plantations, and contract tillage services needing one machine for diverse soils.
Specifications
| Overall Dimensions(mm) | 3615×2575×2075 |
| Total Weight(kg) | 2900 |
| Engine Power(PS) | 102/120 |
| Working Efficiency(h㎡/h) | 0.33~0.5 |
| Gauge Width(mm) | 1250 |
| Crawler Specification(mm) | 500/550×90×56 |
| Rotary Tillage Width(mm) | 2300 |
| Minimum Ground Clearance(mm) | 410 |
| Total Blade Count on Rotor(pcs) | 98 |
| Fuel Consumption per Unit Area(kg/hm²) | ≤35 |
